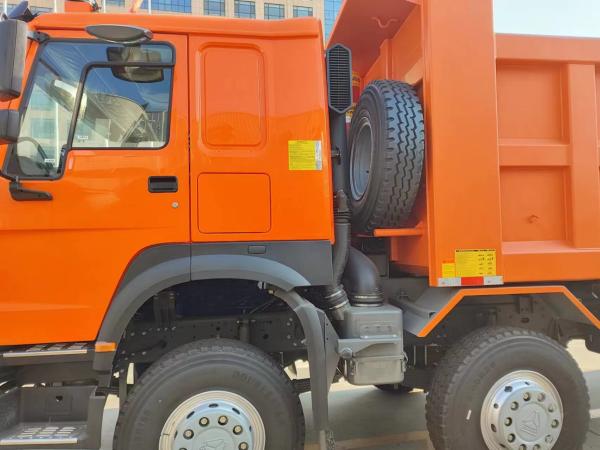

LHD 6×4 10wheels High Horsepower 400HP Low Fuel Consumption HOWO Tipper Dump Truck
Description:
The product has reliable structure and high bearing capacity
Load 30-60 tons, power 266HP-420HP, reliable performance, wide range of application.
This model can meet the requirements of severe environment like construction site and
mining area.which can fullfiled you of short distance transportation of mining rock and
soil as well as engineering construction.
Specifications:
| Tipper Dump Truck SINOTRUK HOWO A7 8X4 for Construction ZZ3317N3867N1 | |
| Model | ZZ3257V3647B1 |
| Drive Type | 6X4 |

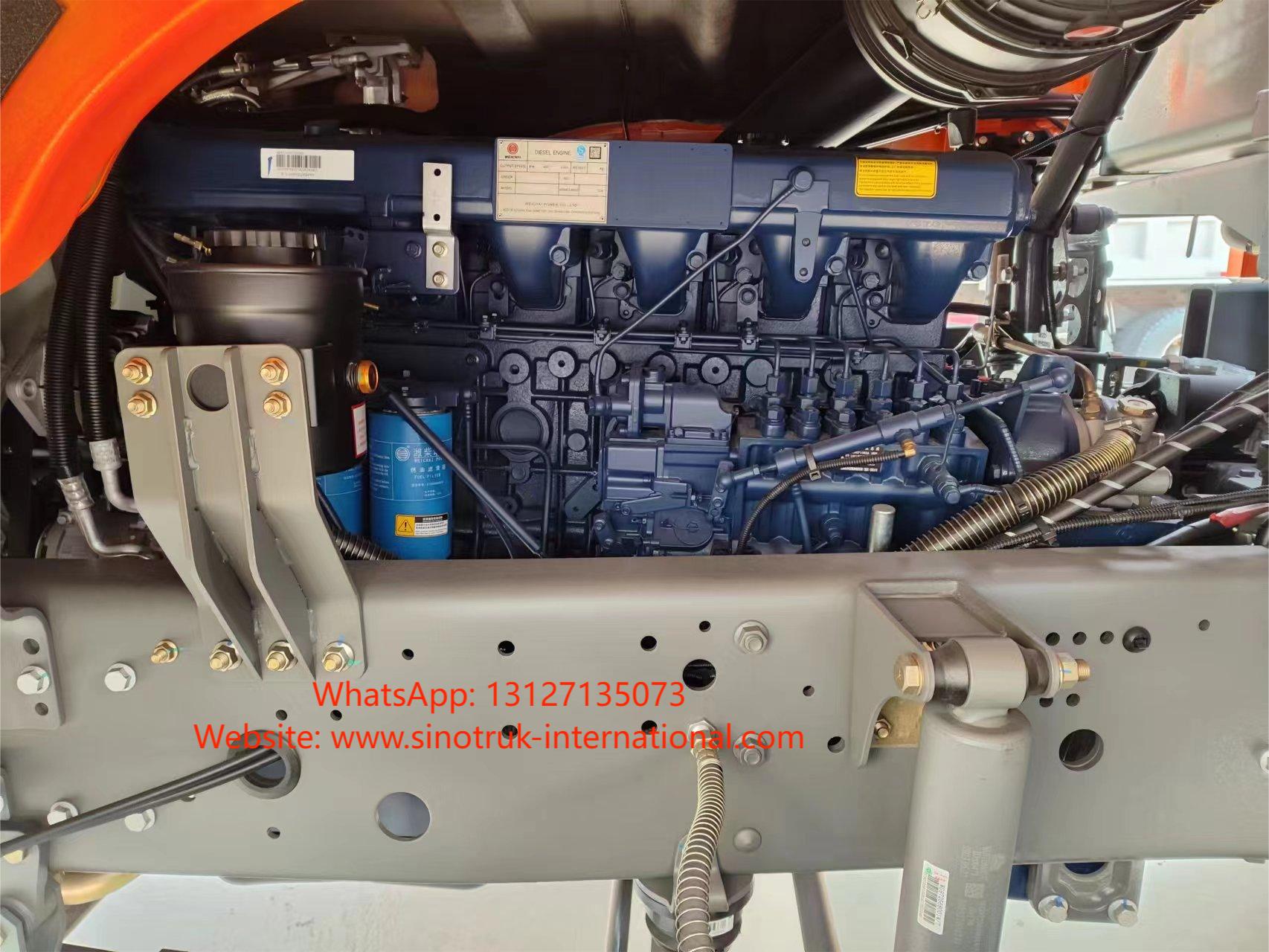

| Engine | | WP12.400E201,400 HP( Euro II) | | 6 cylinder in-line with water cooling, turbo-charging & inter-cooling,4 stroke electronic fuel injection diesel engine | | Displacement : 9.726L | |
| Cabin | HW76 cab(with one sleeper, air-conditioner and new-style seat) |
| Transmission | HW19710(10 forwards & 2 reverses) |
| Front Axle | 1×VGD95 ( 9.5 Tons) |
| Driving Axle | HC16, 16Tons |
| Steering | BOSCH hydraulic steering with power assistance. |
| Clutch | Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with air assistance |
| Rim/ Tire | 11.00R20,12.00R20,12.00R24 Radial tire |
| Wheel base | 3800+1350(mm) |
| Overall dimension | 8575×2496×3450(mm) |
| Cargo body | 5800×2300×1500(mm),Bottom:8mm, Side:6mm |
| The curb weight | 12200(Kg) |
| Gross weight | 12200(Kg) |
| Max. speed | 75km/h |
| Color | White, red, green, golden and so on. |
Applications:
Which is used in Mining industry, Construction business, docks, for transporting soil, sand, stones and so on.
Competitive Advantage:
1) Various types of trucks to meet your needs
2) The world's top technology products are adopted for key components
3) Based on strong technical support and top technology, make the truck higher quality and more reliable
4) Optimized cargo structure, light weight, high rigidity, large load capacity
5) Adopt high strength steel, long service life
6) The optimized sealing structure has better sealing effect.
7) Intelligent hydraulic control system, avoid misoperation, with higher safety and operation efficiency.
8) A variety of box structure and equipment selection
